Top-Quality MNS Motor Protection Switch: Enhance Reliability and Efficiency in Electrical Systems

MNS Powertech motor protection switches are engineered to provide superior reliability and efficiency for electrical systems. Essential for safeguarding motors against overloads, short circuits, and phase failures, these switches enhance operational safety and reduce downtime. With advanced features and durable design, MNS’s solutions ensure optimal performance and an extended lifespan for your equipment. Trusted by industries worldwide, MNS’s motor protection switches exemplify excellence in engineering and innovation.

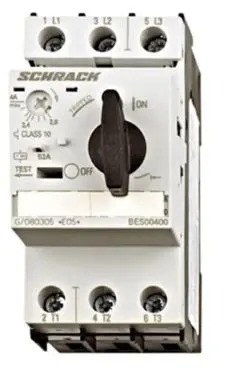

BEST MOTOR PROTECTION SWITCH

DESCRIPTION

• Short-circuit protection
Overload protection
Trip class 10 A
Phase loss sensitivity
ON/OFF switching functionality
Disconnecting feature

DESCRIPTION	NOMINAL CURRENT A/kW	ORDER NO
Size 0-110 kA (short-circuit breaking capacity at Icu 400 VAC)
0.16 A Class 10	0.11-0.16 A/ 0.04 kW	BES00016
0.20 A Class 10	0.14-0.20 A/ 0.06 kW	BES00020
0.25 A Class 10	0.18-0.25 A/ 0.06 kW	BES00025
0.32 A Class 10	0.22-0.32 A/ 0.09 kW	BES00040
0.40 A Class 10	0.28-0.40 A/ 0.09 kW	BES00050
0.50 A Class 10	0.35-0.50 A/ 0.12 kW	BES00050
0.63 A Class 10	0.45-0.63 A/0.18 kW	BES00063
0.80 A Class 10	0.55-0.80 A/ 0.18 kW	BES00080
1.00 A Class 10	0.70-1.00 A/ 0.25 kW	BES00100
1.25 A Class 10	0.90-1.25 A/ 0.37 kW	BES00125
1.60 A Class 10	1.10-1.60 A/ 0.55 kW	BES00160
2.00 A Class 10	1.40-2.00 A/ 0.75 kW	BES00200
2.50 A Class 10	1.80-2.50 A/ 0.75 kW	BES00250
3.20 A Class 10	2.20-3.20 A/ 1.10 kW	BES00320
4.00 A Class 10	2.80-4.00 A/1.10 kW	BES00400
5.00 A Class 10	3.50-5.00 A/ 1.50 kW	BES00500
6.30 A Class 10	4.50-6.30 A/ 2.20 kW	BES00630
8.00 A Class 10	5.50-8.00 A/3.00 kW	BES00800
10.0 A Class 10	7.00-10.0 A/4.00 kW	BES01000
12.5 A Class 10	9.00-12.5 A/5.50 kW	BES01200
SIZE 0-50 kA (short-circuit breaking capacity at Icu 400 VAC)
16 A Class 10	11.0-16.0 A/7.50 kW	BES01600
20 A Class 10	14.0-20.0 A/7.50 kW	BES02000
22 A Class 10	17.0-22.0 A/11.0 kW	BES02200
SIZE 0-50 kA (short-circuit breaking capacity at Icu 400 VAC)
25 A Class 10	18.0-25.0 A/11.0 kW	BES22500
32 A Class 10	22.0-32.0 A/ 15.0 kW	BES23200
40 A Class 10	28.0-40.0 A/ 18.5 kW	BES24000
SIZE 3 – 50 kA (short-circuit breaking capacity at Icu 400 VAC)
63 A Class 10	45.0-63.0 A/ 30.0 kW	BES36300
75 A Class 10	57.0-75.0 A/ 37.0 kW	BES37500

Advanced Features of Motor Protection Switches

Advanced Protection Mechanisms: MNS motor protection switches feature comprehensive safeguards against overloads, short circuits, and phase failures, ensuring your motors are protected from potential damage.

High Durability and Reliability: Crafted with robust materials and precision engineering, MNS switches are designed for long-lasting performance in demanding environments.

User-Friendly Interface: These switches offer an intuitive control panel, making them easy to operate and configure for various applications.

Compliance with Standards: MNS motor protection switches meet international standards and certifications, guaranteeing reliability and safety in line with global industry requirements.

Key Features of Motor Protection Switches

DESCRIPTION

Enhanced Motor Reliability: JRC motor protection switches safeguard against overloads and faults, significantly improving motor lifespan and ensuring consistent performance.
Increased System Efficiency: By preventing equipment failures and optimizing operation, JRC switches contribute to greater overall system efficiency and energy savings.
Reduced Downtime: Reliable protection minimizes operational disruptions and lowers maintenance costs, keeping your systems running smoothly with fewer interruptions.
Improved Safety: JRC switches enhance safety by protecting motors from electrical faults and ensuring safer operational environments.
