The MNS APFC Relay is a cutting-edge solution for Automatic Power Factor Correction. This advanced device improves power factor by automatically adjusting capacitor banks, leading to significant energy savings and enhanced system efficiency. By optimizing power usage, the MNS APFC Relay reduces electrical losses and operational costs, making it a crucial component for both industrial and commercial applications. It ensures reliable performance and precision control, providing a cost-effective way to maintain optimal power factor and boost overall electrical system performance.
The MNS APFC Relay is a cutting-edge solution for Automatic Power Factor Correction. This advanced device improves your power factor by automatically adjusting capacitor banks, which leads to significant energy savings and enhanced system efficiency. By optimizing power usage, the MNS APFC Relay reduces electrical losses and operational costs, making it a crucial component for both industrial and commercial applications. It ensures reliable performance and precision control, providing a cost-effective way to maintain an optimal power factor and boost your overall electrical system’s performance.
| TYPE | Order Number | ||
|---|---|---|---|
BLR-CX 06R | Reactive power regulator | 6 steps | FRBLRCX06R |
BLR-CX 08R | Reactive power regulator | 8 steps | FRBLRCX08R |
BLR-CX 12R | Reactive power regulator | 12 steps | FRBLRCX12R |
BLR-CX 14R | Reactive power regulator | 14 steps | FRBLRCX14R |
BLR-CX NTC | Temperature sensor | FRBLRCXNTC |
Advanced Efficiency: The MNS APFC Relay utilizes state-of-the-art technology to automatically correct power factor, significantly reducing energy waste and improving overall system efficiency.
Precision and Reliability: Equipped with high-precision control mechanisms, the relay ensures accurate adjustment of capacitor banks, maintaining optimal power factor and enhancing system reliability.
User-Friendly Interface: Designed with an intuitive interface, the MNS APFC Relay simplifies installation and operation, making it accessible for both experienced technicians and newcomers. Its easy-to-navigate features streamline setup and adjustments, ensuring seamless integration into any power management system.

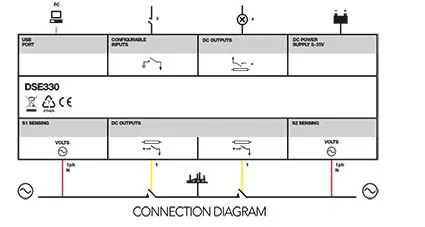

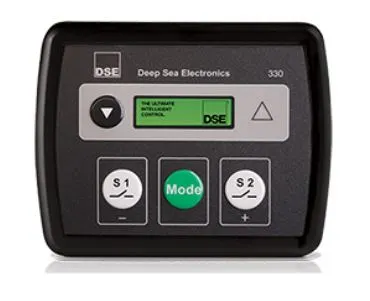

The DSE330 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.
OVERALL SIZE
98 mm x 79 mm x 40mm (3.9″ x 3.1″ x 1.6″)
PANEL CUTOUT SIZE
80 mm x 68 mm (3.1″ x 2.7″)
MAXIMUM PANEL THICKNESS
8.0mm (0.3″)
WEIGHT
0.16kg
PRODUCT VARIANTS
0330-01-330 Auto Transfer Switch Control Module – 12/24 Volt DC Supply
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
61 mA at 12 V, 62 mA at 24 V
MAXIMUM STANDBY CURRENT
50 mA at 12 V, 51 mA at 24 V
